NeoECG S120 – Tablet-Style Cardiograph for Advanced ECG Analysis

NeoECG S120 – Tablet-Style Cardiograph for Advanced ECG Analysis

NeoECG S120 – Tablet-Style Cardiograph for Advanced ECG Analysis

  • $1,315.00

  • High precision and analysis speed
  • Glasgow analysis algorithm
  • 9 and 12-lead ECG waveforms
  • 7-inch touch screen with a resolution of 1024 x 600
  • Notably lightweight, with easy operation via the touch screen
  • Store, preview, review, edit, export, upload, print, and search patient data
Neo-ECG-S120-Leaflet.pdf
File Size
Neo-ECG-S120-Leaflet.pdf 3.73MB Download

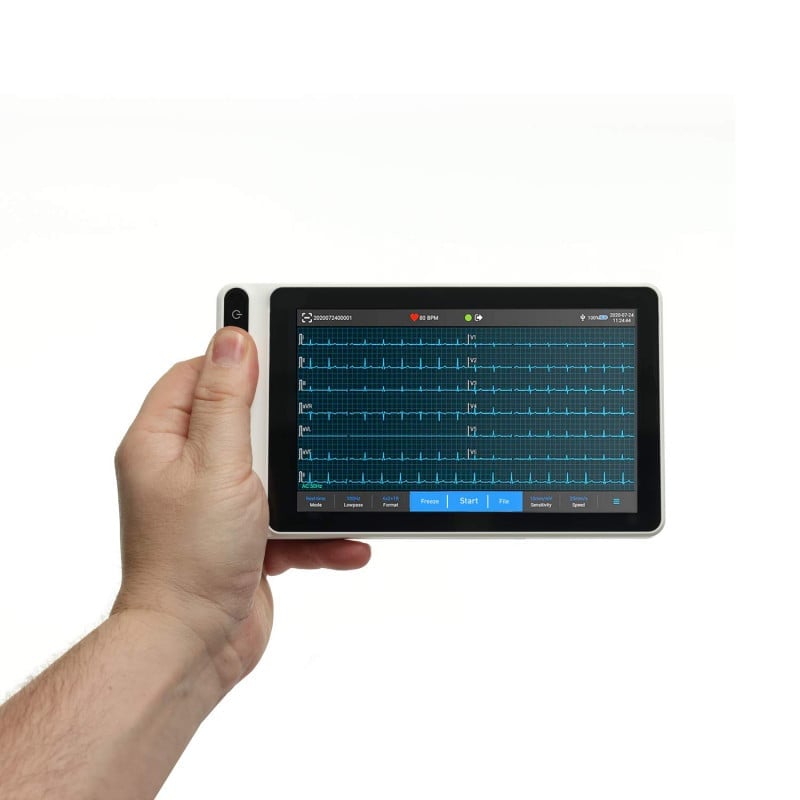

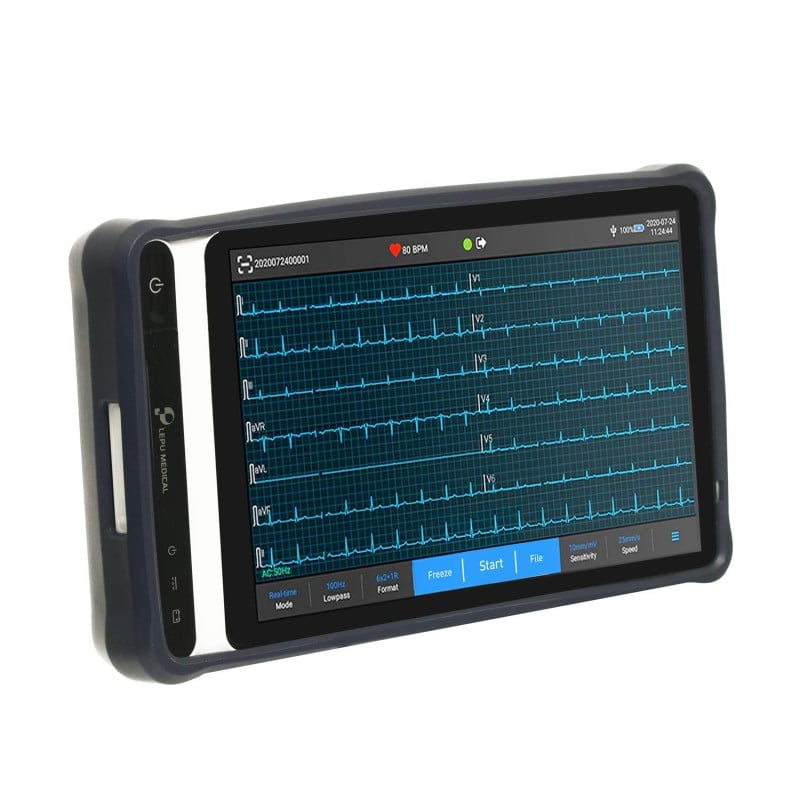

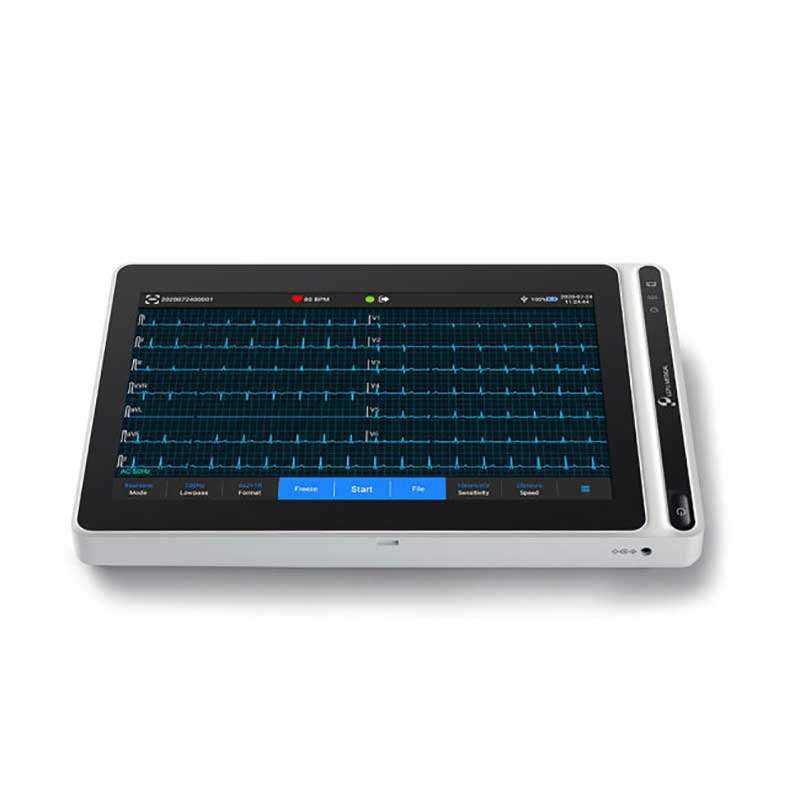

The Neo ECG S120 is a lightweight, portable medical ECG device in tablet design weighing less than 1 kg. It enables recording and analysis the heart's electrical activity, allowing for quick diagnosis of cardiac conditions in various settings, including ambulances, remote clinics, and home monitoring. It enhances real-time heart monitoring, early detection of arrhythmias or heart attacks, and seamless data transmission for telemedicine and emergency use.

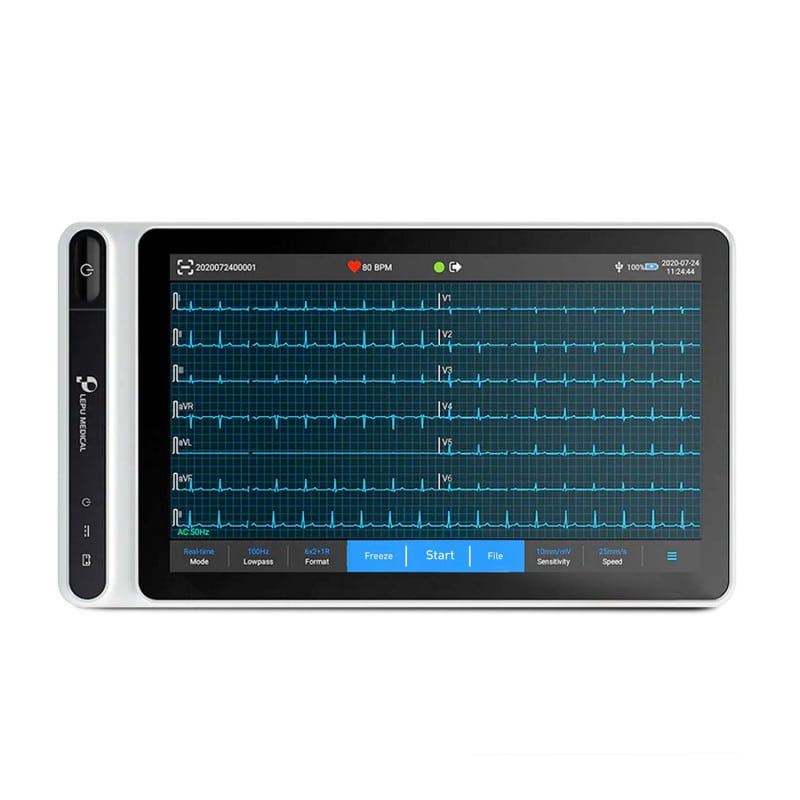

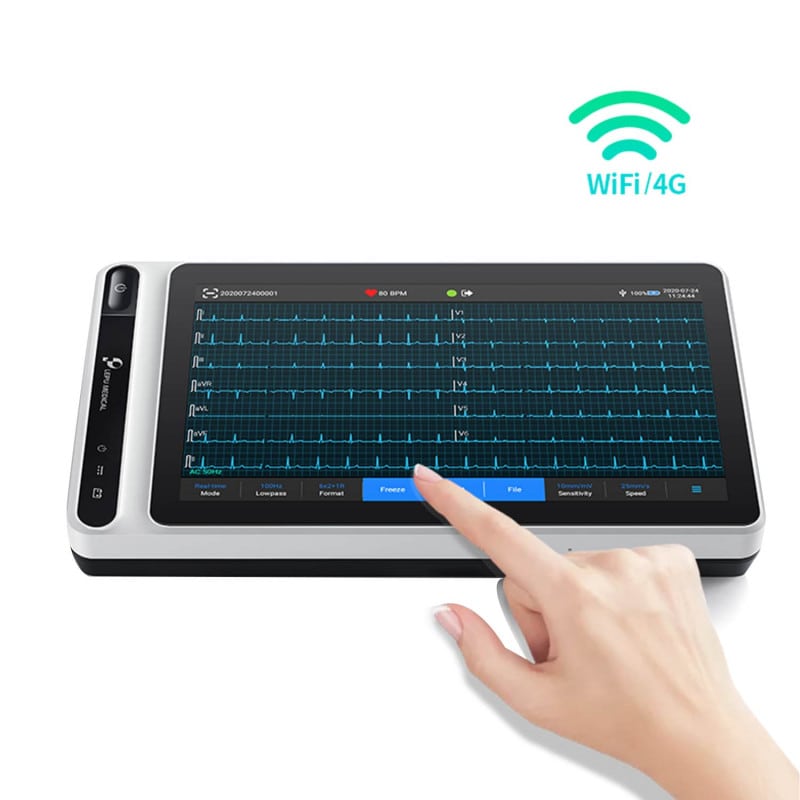

The device features a 7-inch high-resolution color touch screen and an integrated camera for convenient scanning of patient data. With WiFi connectivity, it can be flexibly connected and operated using both an external DC power supply and an internal rechargeable lithium battery. The device offers an impressive battery life of up to 10 hours.

The Neo ECG S120 device supports synchronous acquisition and display of 9 and 12-lead ECG waveforms and provides automatic pacing detection and marking for precise analysis. Patient information input can be input via a virtual alphanumeric keyboard or barcode scanning. With versatile output options, files can be saved in various formats such as Carewell EKG, PDF, BMP, HL7, DICOM, and SCP.

Key Features

  • ECG Leads and Heart Rate Detection: Simultaneous acquisition and display of the 6/9/12-lead waveforms, as well as automatic heart rate detection. Ability to Freeze the ECG waveform on the screen.
  • Sampling Modes: It offers four sampling modes: pre-sampling, real-time sampling, periodic sampling, and trigger sampling.
  • Analysis Algorithm: Glasgow
  • Automatic Functions: Supports automatic pacing detection and marking, auto RR analysis, heart rate variability (HRV) analysis, medication testing, and ECG event mode.
  • Data Management: The device can store, preview, review, edit, and upload patient data through wireless transmission via Wi-Fi and mobile networks. Patient data can also be exported to a USB flash drive via a USB connector or printed via laser printer.
  • Data Export Formats: Files can be exported in multiple formats, including Carewell ECG, PDF, BMP, HL7, DICOM, and SCP.
  • User Input: Patient information can be entered using a virtual keyboard or by scanning barcodes.
  • Security: Supports the online and offline user login permission control, use password or account & password authentication to use the device.
  • Power Supply: Operates on an external DC power supply and includes a built-in rechargeable lithium battery. Up to 10 hours of rechargable lithium battery life.
  • AI-ECG Platform Support: AI-powered diagnosis leverages advanced algorithms to analyze medical data with high accuracy, enabling early detection of diseases (optional).

Technical Details

Display 7-inch colour touch screen
Resolution 1024 x 600 pixels
Size (L x W x H) 197 x 112.4 x 26 mm
Weight 0.8 kg
Power Supply DC power supply or rechargeable lithium battery
Sampling Rate 32,000 dots/s
Leads 9-lead, 12-lead (simultaneous acquisition & analysis)
Analysis Algorithm Glasgow
HR Range 30 - 300 bpm
Accuracy + 1
Input Impedance ≥ 100 MΩ (10Hz)
Input Loop Current < 10 nA
Calibration Voltage 1 mV +2 %
Depolarization Voltage ± 900 mV, ± 5 %
System Noise ≤ 12.5 μV
Amplitude Quantification 0.95 μV / LSB
A/D Conversion 24-bit
Common Mode Rejection Ratio (CMRR) ≥ 140 dB (AC filter on) / ≥ 120 dB (AC filter off)
Time Constant ≥ 5 s
Sensitivity Auto, 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV
Accuracy ± 5 %
Printing Speed 5, 6.25, 10, 12.5, 25, 50 mm/s, with less than ±3% error
Frequency Response 0.01 Hz ~ 350 Hz (+0.4dB - 3.0 dB)
Filters - AC Filter 50Hz, 60Hz, Off
- EMG Filter: 25Hz, 35Hz, 45Hz, off
- ADS Filter: 0.01Hz, 0.05Hz, 0.32Hz, 0.67Hz
- Low Pass Filter: 75Hz, 100Hz, 150Hz, 300Hz, off
Electrode Polarization Recovery Time < 10 s
Pace Pulse Display Display ECG signal for pacing pulses with an amplitude of ±2mV to ±700mV, a duration of 0.1 ms to 2.0 ms, a rise time of less than 100 μs, and a frequency of 100/min

The NEO ECG S120 is designed to provide healthcare professionals with a reliable and efficient tool for cardiac monitoring, combining advanced features with user-friendly operation. AI-powered analysis in ECG enhances accuracy, speed, and early detection of cardiac conditions by automatically identifying abnormalities, reducing human error, and enabling real-time, data-driven decision-making for better patient outcomes.

Contents: 7-inch ECG tablet, ECG cable, chest electrodes, limb electrodes, battery, power cable
