Portable 12-Lead Resting ECG Monitor PCECG-500

Portable 12-lead Resting ECG Monitor PCECG-500

Portable 12-Lead Resting ECG Monitor PCECG-500

  • Brand:Lepu Medical
  • Product Code:PCECG-500
  • Ships in:1-2 days

  • $895.00

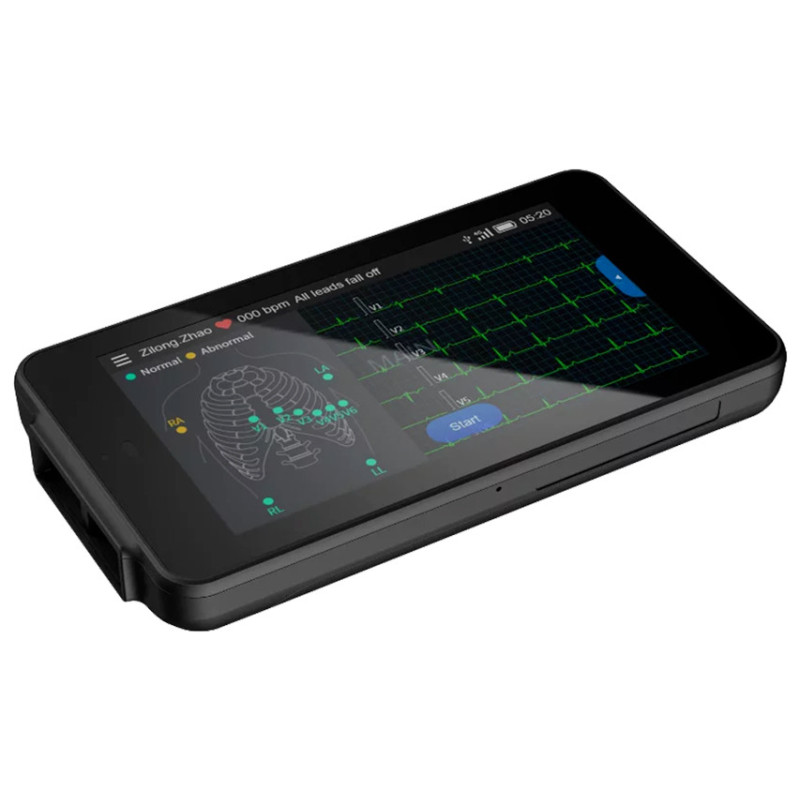

Portable, lightweight and easy to use PCECG-500E ECG monitor from LEPU Medical provides collection, analysis, storage and transmission of 12-lead ECG information, which in combination with the Glasgow algorithm, ensures complete and immediate analysis. The device is a great choice for clinics, family doctors and emergency care.

Ideal for clinics and medical offices, as it is useful for quick and effective diagnosis in professional environments, as well as for home use in daily monitoring of heart health.

Key Features

  • 4.46-inch LCD color touch screen, portable design, small size and lightweight, easy to carry.
  • Simultaneous acquisition and display of 6 and 12 lead waveforms and heart rate detection.
  • Remote reporting, data transfer, printing via Wi-Fi transmission or E-mail.
  • Four sampling modes: pre-sampling, real-time sampling, periodic sampling, and triggered sampling.
  • Provides Glasgow conventional analysis algorithm to automatically analyze the acquired ECG waveforms and output measurement values and diagnostic results.
  • Supports automatic mode and R-R mode, automatic pacing detection and marking.
  • ADS (Anti-Drift System) and EMG (Electromyography) interference.
  • HD camera
  • Powered by external DC power or built-in rechargeable lithium battery which supports continuous working time >24 hours.

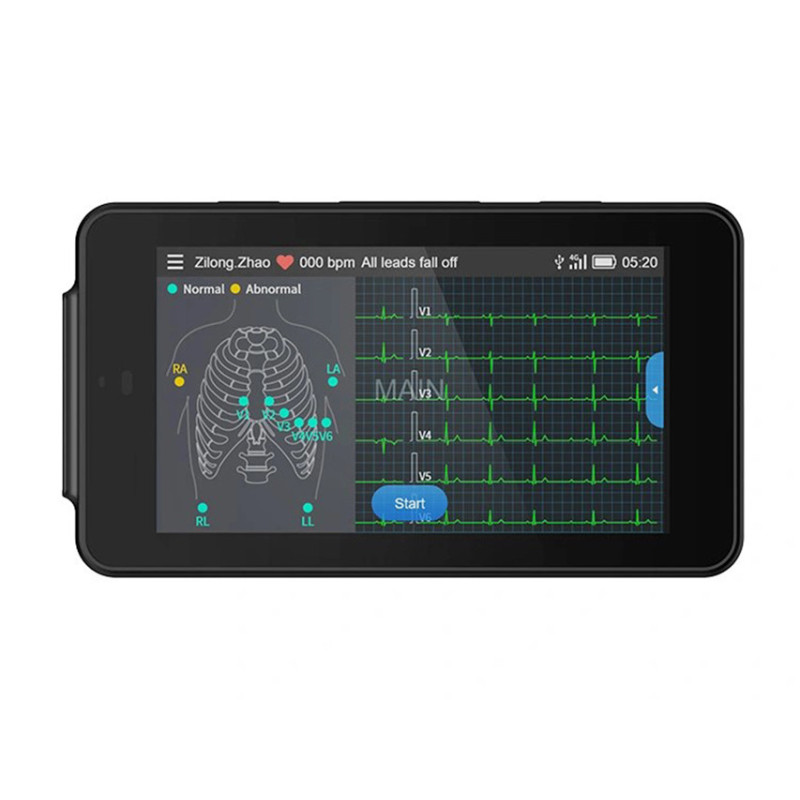

6/12 lead waveform supports synchronous acquisition and display of 6/12 lead waveform, as well as heart rate detection and indication of poor electrode contact.

Easy to use, light and portable. It only weighs 250 g, about the size of a smartphone.

Technical Specifications

Display: 4.46" colour LCD touchscreen, 480x854 pixels resolutionSize - weight: 134×74×17 mm - 250 g (including battery)
Display4.46" colour LCD touchscreen, 480x854 pixels resolution
MethodPeak-peak detection
Measurement range30-300 bpm; ± 1 bpm
Leads6/12-lead synchronous acquisition and analysis
Sensitivity2.5, 5, 10, 20 mm/Mv; ± 5%
Input impedance50MO (10Hz)
Sampling rate2000 samples/sec
ModesPre-sampling, real-time sampling, periodic sampling, triggered sampling
CMRR100dB (AC filter on)
Frequency response0.05Hz-150Hz+0.4dB(-3.0dB), 10Hz
Time constant3.2s
FilterAC filter 50Hz, 60Hz, Off
EMG (Electromyography) filter: 25Hz, 35Hz, 45Hz, Off
ADS (Anti-Drift System) filter: 0.05Hz, 0.32Hz, 0.67Hz
Lowpass filter: 75Hz, 100Hz, 150Hz, Off
Speed5, 6.25, 10, 12.5, 25, 50 mm/s; ±3%
Power supplyBuilt-in rechargeable lithium-ion battery, 3.8V 6000mAh. Charging time: 8 hours
Dimensions134×74×17 mm - 250 g (including battery)

Contents:

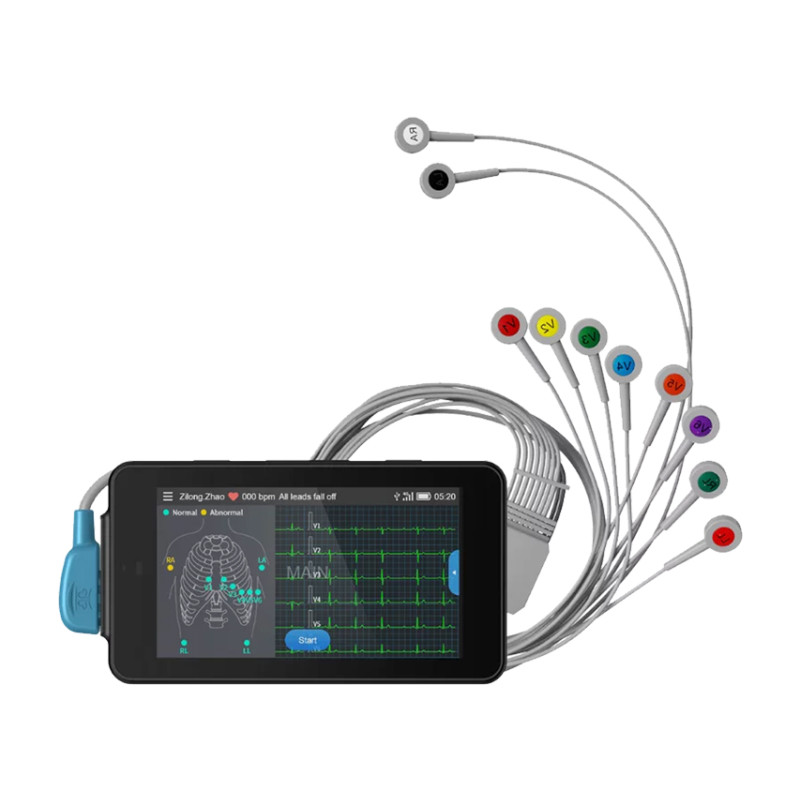

  • 1 ECG lead wire
  • U-Disk (type C & USB port)
  • Disposable adult ECG electrodes (2 sets of 10 pcs)
  • USB cable
  • Rechargeable lithium-ion battery
  • Multilingual manual
