SP-20 Handheld Oximeter

SP-20 Handheld Oximeter

SP-20 Handheld Oximeter

  • $175.00

  • Fast and accurate measurements of SpO2 and PR
  • Illuminated, easy-to-read 3.5-inch colour display
  • Long battery life (up to 18 hours)
  • Data storage capacity: 500 hours
  • Complies with standards: EN 60601-1-2, IEC60601-1-2, ISO 80601-2-61
leaflet.pdf
user-manual.pdf
File Size
leaflet.pdf 280.33KB Download
user-manual.pdf 1008.45KB Download

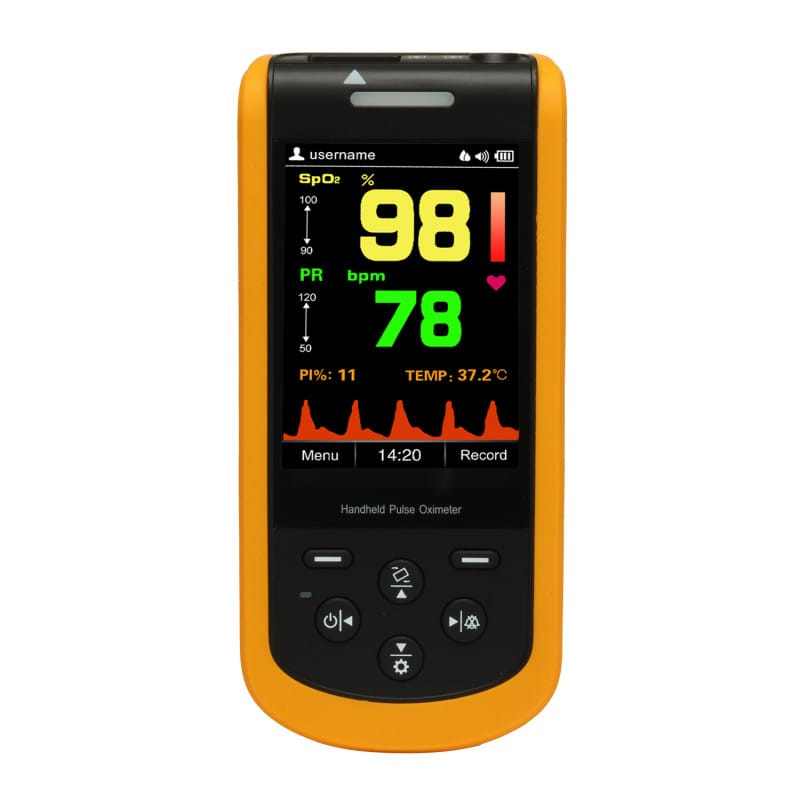

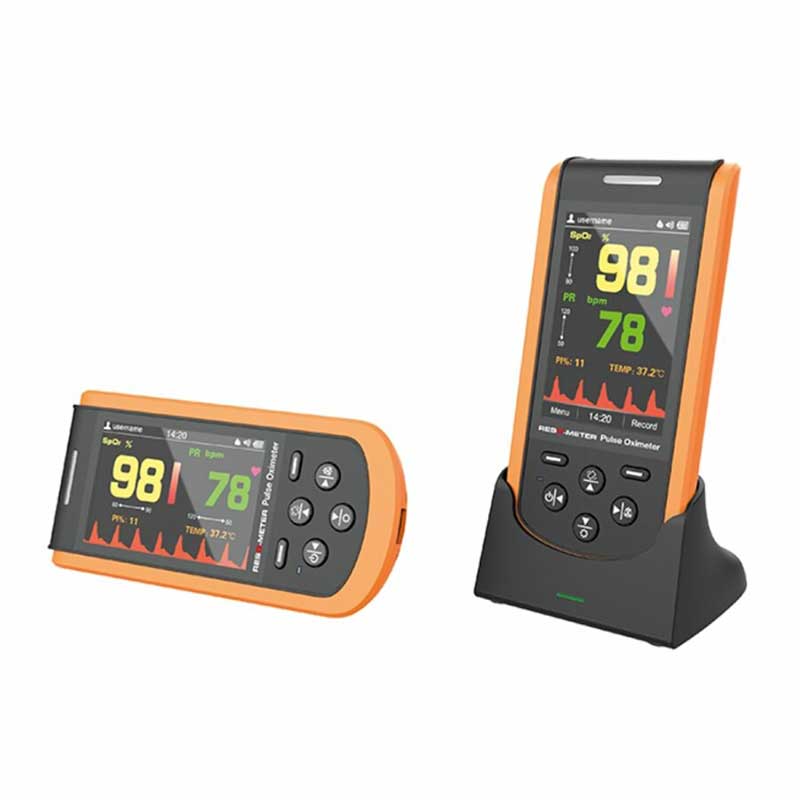

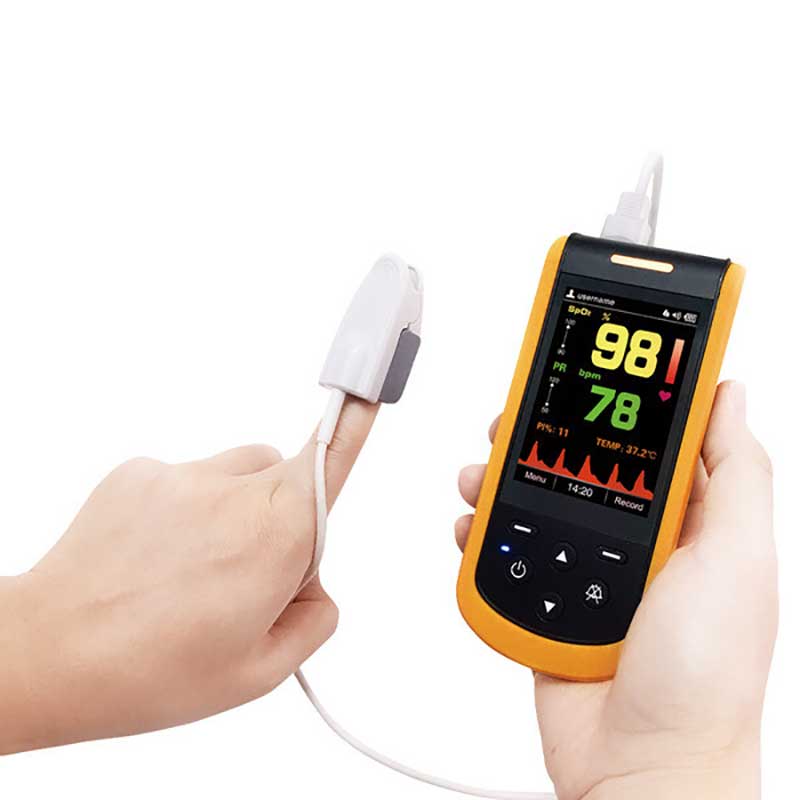

The SP-20 Handheld Pulse Oximeter with Alarms is a portable device designed to measure oxygen saturation (SpO₂) and pulse rate (PR) in patients of all age groups, including adults, children, and infants. It is a perfect choice for either spot-checking or continuous & overnight monitoring in both clinical and homecare situations. The SP-20 Handheld Pulse Oximeter can help detect low oxygen levels, which may indicate lung or heart problems, and assist in managing conditions such as COPD, asthma, and sleep apnea. The device can also be used in critical care and during surgeries to ensure patients maintain adequate oxygen levels.

The SP-20 oximeter benefits from Lepu Medical's MoveOxy® SpO2 Technology:

  • Accurate monitoring against low perfusion
  • Reliable monitoring against motion interference
  • Sensitive monitoring against weak pulse signal

Other Useful Features:

  • High-resolution 3.5-inch color LCD display with dual-mode viewing of oxygen saturation (SpO₂) values, pulse rate (PR), perfusion index (PI%), plethysmograph, and pulse bar.
  • If predefined limits for SpO₂ or pulse rate are exceeded, the intelligent alarm system triggers audible and visual alerts. The lithium battery provides up to 18 hours of operating time, while data storage can accommodate 500 hours of SpO₂ data.
  • The device includes an adjustable backlight for enhanced visibility and provides a real-time display of battery status with low battery notifications. An automatic shutdown function after three minutes of inactivity and a power-saving mode help conserve energy.
  • Easy-to-use keypad operation with an intuitive pictorial menu structure and a help screen featuring on-screen sensor positioning diagrams.

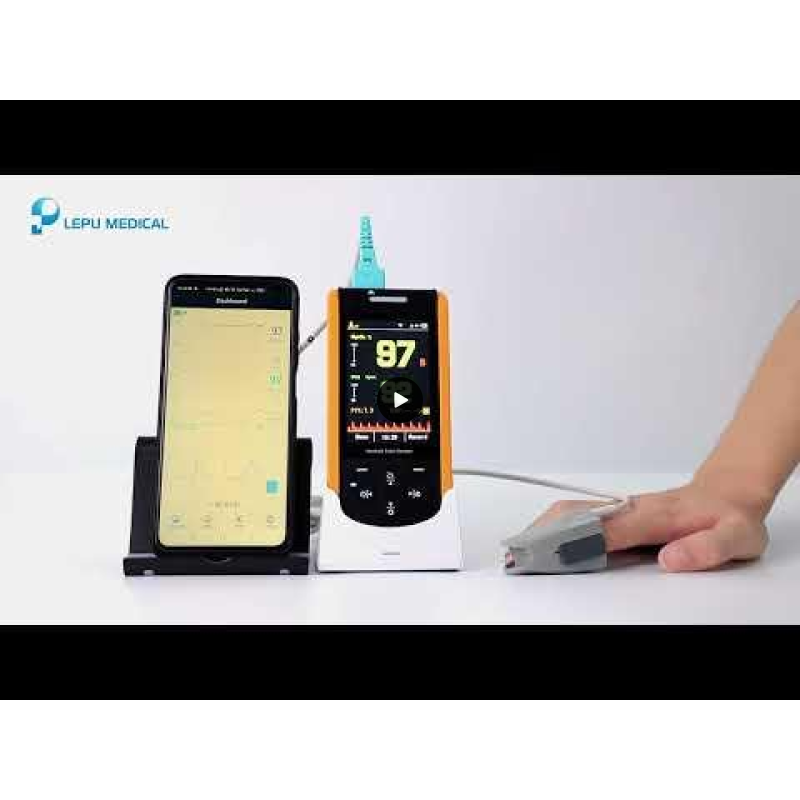

  • Wireless Bluetooth connectivity to the FREE ViHealth Android/iOS iPhone app for real-time visualization of oximetry readings, as well as storage of oximetry measurements for later review.
  • FREE "Oximeter Data Manager" PC software available for download from the manufacturer's website for sleep study analysis and reporting.

Technical Details

Measurement ModeContinuous or intermittent
SpO2 Measurement TechnologyLED sensor with 2 wavelengths
SpO2 Measurement Range0 - 100%
SpO2 Measurement Accuracy±3% (range of 70-100%)
PR Measurement Range30 bpm - 250 bpm
PR Measurement Accuracy±2 bpm or ±2%
PI Display Range0.2 - 20%
Operating Temperature5 - 40°C
Operating Humidity15 - 93% (non-condensing)
Data StorageUp to 500 hours
Display3.5-inch LCD colour display with rotation
Power Supply2,000 mAh Lithium Battery
ChargingCharging station or USB cable
Size (L x W x H)158 x 73 x 25 mm
Weight230 g (including battery)
Data TransferUSB cable or wireless

The SP-20 Handheld Pulse Oximeter is a reliable and efficient tool for monitoring patients' oxygen saturation and pulse rate, offering both accuracy and ease of use in various healthcare settings.

Includes:

  • 1. x Oximeter with built-in Lithium Battery

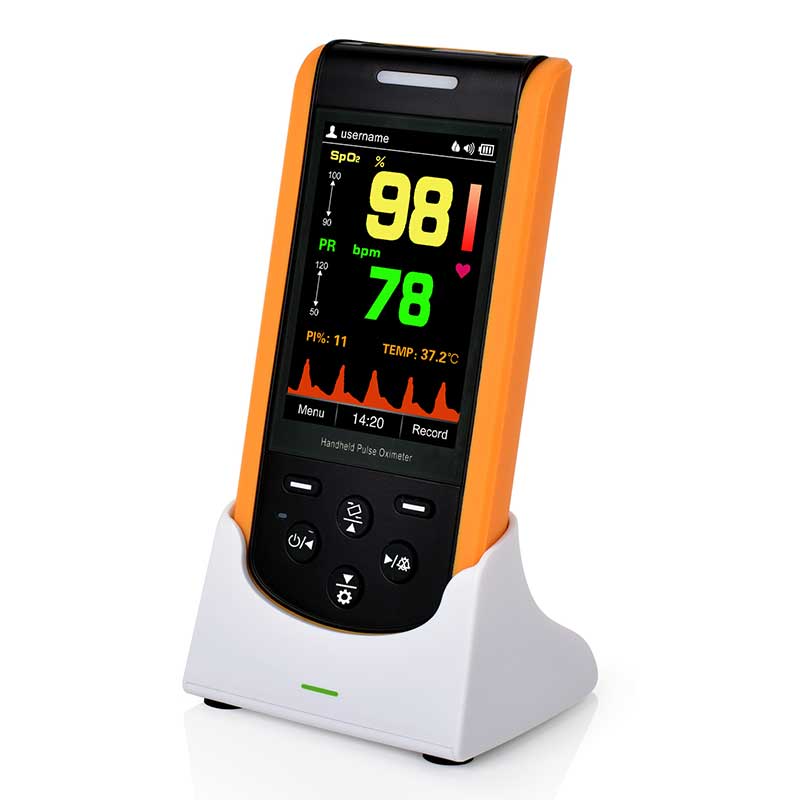

  • 1 x Charger Base/Desk Stand with USB/micro USB cable
  • 1 x Operation Manual
  • 1 x 15040091 Adult Finger Sensor

Warranty: two years on Pulse Oximeter handset
